Brand Name: TIANYANG
Type: High speed centrifugal spray drying equipment
Model: LT-Series
Max. Water Evaporation Capacity: 5-3000kg/h
Spray Type: High speed centrifugal atomizer
Drying Time: According to customer requirements.
Applications: Medicine Processing, biological, food, medicine, etc.
Warranty: One year
Product Description

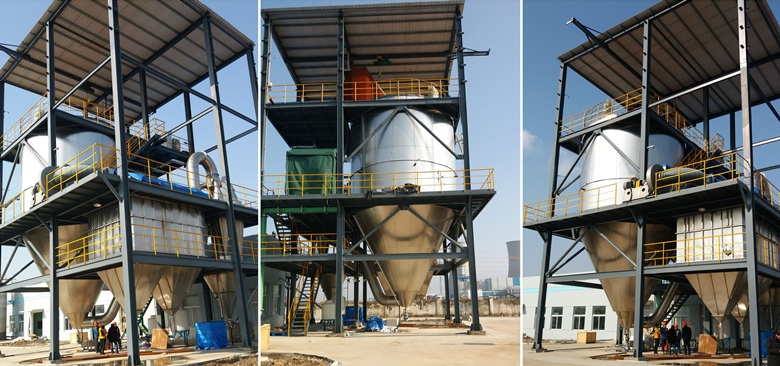

LT high speed centrifugal spray drying equipment is a kind of drying process equipment. It can make the materials of solution, emulsion, suspension and paste liquid into dry powder, fine and medium particle products through spray drying. It has fast drying speed, high efficiency, few processes, and saves manpower.
LT series high speed centrifugal spray drying equipment is especially suitable for heat-sensitive materials, which is beneficial to increase the output and obtain good process technology and economic benefits. Widely used in fine chemicals, ceramic materials, food, biology, Chinese and Western medicine, environmental protection and other industries.
Main Technical Parameter
Model |
LT-5 |
LT-25 |
LT-50 |
LT-150 |
LT300-2000 |
Inlet Temperature (℃) |
140-350 ℃ |
140-350 ℃ |
140-350 ℃ |
140-350 ℃ |
140-350 ℃ |
Out Temperature (℃) |
80-90 ℃ |
80-90 ℃ |
80-90 ℃ |
80-90 ℃ |
80-90 ℃ |
Max. Water Evaporation Capacity (kg/h) |
5 |
25 |
50 |
150 |
300-2000 |
Transmission Form of Centrifugal Spray Head |
Compressed air drive |
Mechanical transmission |
|||
Atomization Rotated Speed (RPM) |
25000 |
22000 |
21500 |
18000 |
15000 |
Spray Disc Diameter (mm) |
50 |
102 |
108 |
150 |
180-340 |
Heating Sources (Option) |
Electricity |
Electricity |
Electricity + steam, fuel oil, gas |
Electricity + steam, fuel oil, gas |
Up to the user |
Electric Heating Maximum Power (KW) |
12 |
45 |
81 |
99 |
Customized |
Dimensions (L×W×H) m |
1.8×0.93×2.2m |
3×2.7×4.26m |
3.7×3.2×5.1m |
5.5×4.5×7m |
Customized |
Dry Powder Recovery |
≥95% |
≥95% |
≥95% |
≥95% |
≥95% |
Remarks: Water evaporation capacity depends material property, solidcontent, warmairinlet & outlet temperature.
Features and Benefits
* Fast drying speed. When the material is atomized by the centrifugal atomizing disc, the surface area is greatly increased. In the high-temperature airflow, 95-98% of the water can be evaporated instantly, and the drying time is only a few seconds.
* The co-current spray drying method can make the droplets flow in the same direction as the hot air. Although the temperature of the hot air is high, because the hot air enters the drying chamber and immediately contacts the spray droplets, the indoor temperature drops sharply, so that the drying material is not overheated. , so it is also suitable for drying heat-sensitive materials.
* Wide range of use. According to the characteristics of the material, it can be dried with hot air or molded with cold air. A large number of products with very different characteristics can be produced by this drying equipment. The commonly used types include: biological fermentation, biological extraction, Chinese and Western medicines, polymers and resins, dyes, colors, ceramic materials, electronic materials , glass, rust remover, insecticides, carbohydrates, dairy and egg products, tannic acid, non-staple food in slaughterhouses, blood and fish products, detergents and surfactants, fertilizers, organic compounds class, inorganic compounds class.
* Since the drying process is completed in an instant, the particles of the product can basically keep the spherical shape of droplets, and the product has good dispersibility, fluidity and solubility.
* The production process is simplified and the operation is convenient. Spray drying is usually used for special materials with solid content of 10~70% and good fluidity, even if the moisture content is as high as 90%, it can be dried into powder products at one time. After most of the materials are spray-dried to collect finished products, there is no need for secondary drying, crushing and screening, which not only simplifies the production process, but also reduces the production process and ensures the purity of the finished product. The particle size, bulk density and water content of the product are within a certain range and can be adjusted by changing the operating conditions, and the sequence of production, management and operation is convenient.
* In order to prevent the material from being polluted and prolong the life of the equipment, all parts in contact with the material are made of SUS304 stainless steel on-off device.
Types of Dry Materials (Parts)
* Polymers and resins |
* Tannic acid |
* Dyes, colors, pigments |
* Non-staple food, blood and fish products in slaughterhouses |
* Ceramic materials, glass ceramic sand |
* Detergents and surface stains |
* Rust remover fungicides insecticides |
* Ingredients |
* Carbohydrates and similar products |
* Organic chemicals |
* Dairy and eggs |
* Inorganic chemicals |
* Food and plant extracts |
* Cellulose |
* Chinese and Western medicines, biological fermentation products |
* By-products and other sundries, etc |
