5KG/H Laboratory Spray Dryer
Model: LT-5;Material: SUS304, SUS316L, Ti;Max. Water Evaporation ;Capacity: 5kg/h;Heating Method: Electric heating


Contact: Mr Tang
E-mail: [email protected]
Mobile Phone: +86-13906177584
Website: www.tydrying.com
Address: Qiangzhou Town,Wuxi City,Jiangsu,China

Whats app:
+8613771018713

Brand Name: TIANYANG

Type: Laboratory Spray Dryer

Model: LT-5

Material: SUS304, SUS316L, Ti

Max. Water Evaporation Capacity: 5kg/h

Heating Method: Electric heating

Applications: Chemicals processing, food processing

Warranty: One year

Product Description

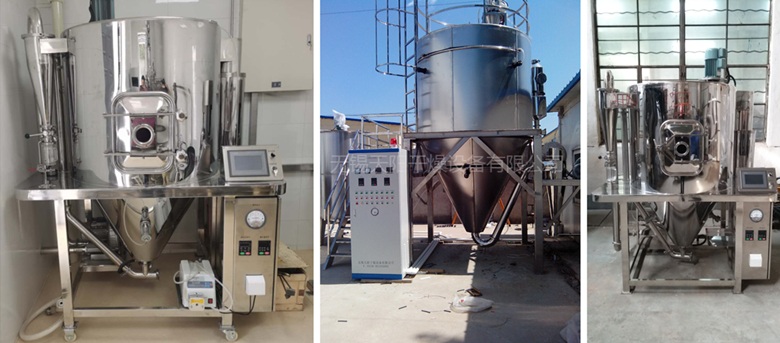

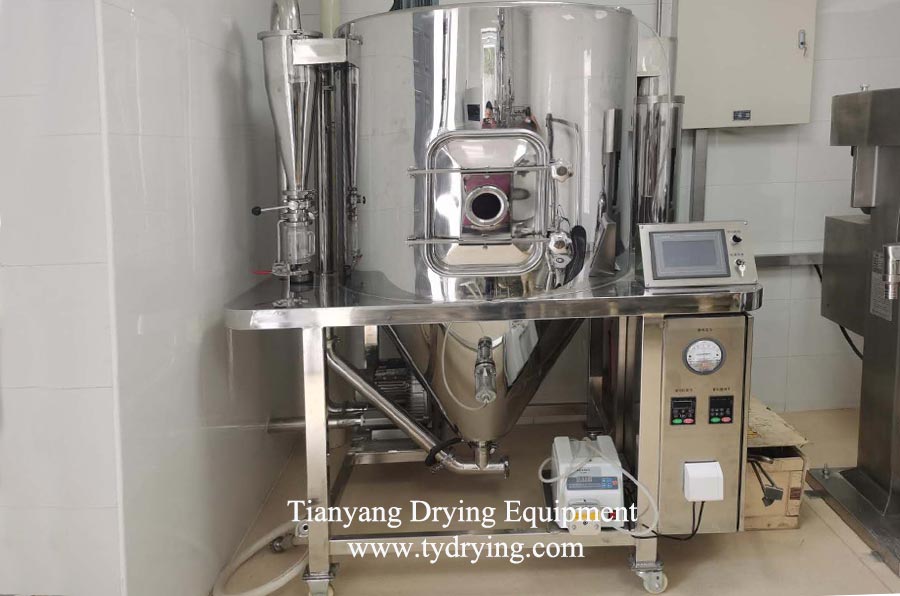

LT-5 Laboratory scale spray dryer is widely used for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.

LT series 5KG/H laboratory spray dryer has been used in enterprises, colleges and universities, scientific research institutions and other industries. According to the characteristics of different products of users, it can explore the ideal process conditions of its spray drying through experiments, which has laid a solid foundation for the industrial production of products.





Technical Specifications of Laboratory Spray Drying Equipment

Model

LT-5

Material

SUS304, SUS316L, Ti

Inlet Temperature (℃)

140-350

Out Temperature (℃)

80-90

Max. Water Evaporation Capacity (kg/h)

5kg

Applications

Chemicals processing, food processing, etc.

Transmission Form of Centrifugal Spray Head

Compressed air drive

Atomization Rotated Speed (RPM)

25000

Spray Disc Diameter (mm)

50

Heating Method

Electric heating

Electric Heating Maximum Power (KW)

18Kw

Dimensions (L×W×H) mm

1601*1500*1801

Dry Powder Recovery

95%

Key Features

* Short drying time, suitable especially for thermal sensitive material and high viscosity material like medical concentrate.

* Easy operation, convenient adjusting, easy to disassemble and clean.

* Various particle size available by adjusting the spray rpm, spray disc, liquid concentrate and air etc.

* Can get various final moisture by adjusting the spray volume and outlet air temp.

* Multiple dust collector used to ensure no material loss.

Main Technical Design

1. Centrifugal atomizing or pressure atomizing

2. Pre Middle air filter system

3. Heating method with electric, gas, steam, oil

4. Drying Method:

* High speed centrifugal spray drying

* High speed centrifugal spray granulation drying

* Pressure spray granulation drying

* Flash drying

* Belt drying

5. Collection and Dedusting:

* Cyclone collection+ bag dedusting

* Cyclone collection+ Water spray dedusting

* Tower collection + Cylone dedusting+bag dedusting

* Tower collection + Cylone dedusting+water spray dedusting

* Cyclone + buffering sino collection

* Cyclone +refrigeration dehumidifying collection

* Bag collection

6. Control System: PLC programme control or touch screen control
