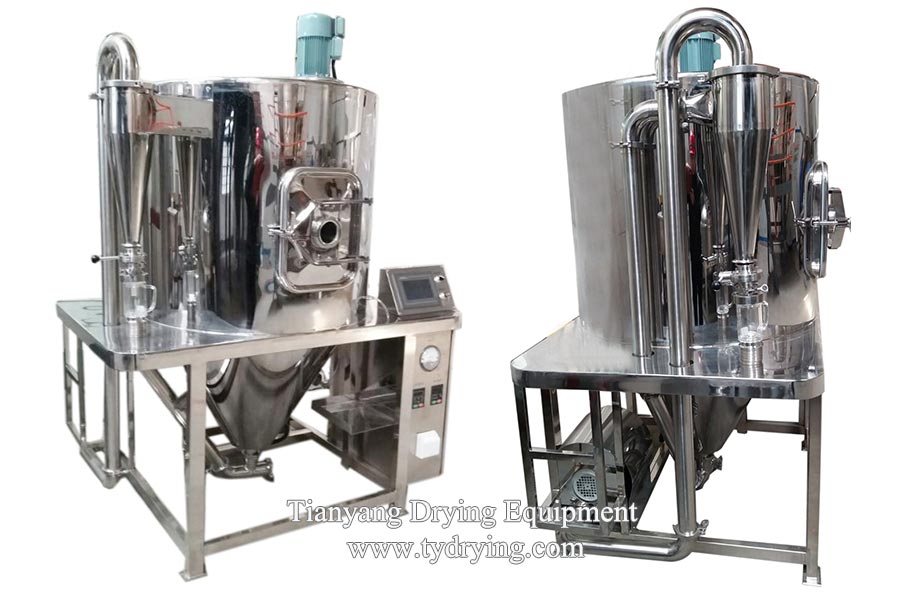

LT-5 Lab Scale Spray Dryer for Powders
Model: LT-5;Material: SUS304, SUS316L, Ti;Max. Water Evaporation ;Capacity: 5kg/h;Heating Method: Electric heating;Applications: Chemicals processing, food processing;Warranty: One year


Contact: Mr Tang
E-mail: [email protected]
Mobile Phone: +86-13906177584
Website: www.tydrying.com
Address: Qiangzhou Town,Wuxi City,Jiangsu,China

Whats app:
+8613771018713

Brand Name: TIANYANG

Type: Lab Scale Spray Dryer

Model: LT-5

Material: SUS304, SUS316L, Ti

Max. Water Evaporation Capacity: 5kg/h

Heating Method: Electric heating

Applications: Chemicals processing, food processing

Warranty: One year


Product Description

The spray volume is 1-5 kg/h. Utilizing the frequency control centrifugal atomizer, the LT-5 lab scale spray dryer for powders can dry materials such as solutions, emulsions, suspending liquids and paste liquids into powders. Fixed or movable structure is alternative, and it is flexible and convenient with high speed and high efficiency. It is suitable to heat-sensitive materials.

LT series lab spray dryer has been used in enterprises, colleges and universities, scientific research institutions and other industries. According to the characteristics of different products of users, it can explore the ideal process conditions of its spray drying through experiments, which has laid a solid foundation for the industrial production of products.




Working Principle

After being sent into the centrifugal atomizer by a feed pump, the freed liquid is then atomized into droplets. Heat-exchange carries out between the droplets and hot air, and material is dried into powder in a very short time. powder is collected by a barrel at the bottom of the tower or cyclone separator. LT-series lab scale spray drying machine is an ideal device to dry feed liquid into powder for one-time continuous production.


Technical Specifications of Lab Spray Drying Equipment

Model

LT-5

Material

SUS304, SUS316L, Ti

Inlet Temperature (℃)

140-350

Out Temperature (℃)

80-90

Max. Water Evaporation Capacity (kg/h)

1-5kg/h

Applications

Chemicals processing, food processing, etc.

Transmission Form of Centrifugal Spray Head

Compressed air drive

Atomization Rotated Speed (RPM)

25000

Spray Disc Diameter (mm)

50

Heating Method

Electric heating

Electric Heating Maximum Power (KW)

18Kw

Dimensions (L×W×H) mm

1601*1500*1801

Dry Powder Recovery

95%


Key Features

* Short drying time, suitable especially for thermal sensitive material and high viscosity material like medical concentrate.

* Easy operation, convenient adjusting, easy to disassemble and clean.

* Various particle size available by adjusting the spray rpm, spray disc, liquid concentrate and air etc.

* Can get various final moisture by adjusting the spray volume and outlet air temp.

* Multiple dust collector used to ensure no material loss.


Application Drying Material

Industry

Drying Material

Chemical Industry

Sodium (potassium) fluoride, basic dyestuff, amino acid, catalyst, dye intermediate, compound fertilizer, white carbon black, etc.

Plastic Resin

AB, ABS emulsion, urea resin, phenolic resin, PE, PVC, etc.

Food Industry

Oats, coffee, instant tea, flavoring, protein, hydrasate, soybean protein, Peanut protein, etc.

Sugar

Corn speep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, etc.

Ceramic Industry

Aluminum oxide, tile material, magnessium oxide, talcum powder, etc.
