Automatic Energy-saving Centrifugal Spray Granulation Dryer
Model: LX Series;Material: SUS304, SUS316L;Max. Water Evaporation Capacity: 5-1000kg/h;Heating Method: Electricity+steam, fuel oil, gas, up to the user.


Contact: Mr Tang
E-mail: [email protected]
Mobile Phone: +86-13906177584
Website: www.tydrying.com
Address: Qiangzhou Town,Wuxi City,Jiangsu,China

Whats app:
+8613771018713

Brand Name: TIANYANG

Type: Centrifugal Spray Granulation Dryer

Model: LX Series

Material: SUS304, SUS316L

Max. Water Evaporation Capacity: 5-1000kg/h

Heating Method: Electricity+steam, fuel oil, gas, up to the user.

Applications: Ceramics, magnetic materials, new energy materials, new metal materials, inorganic medicines, biology, food, chemicals, etc.

Warranty: 1 year

Product Description

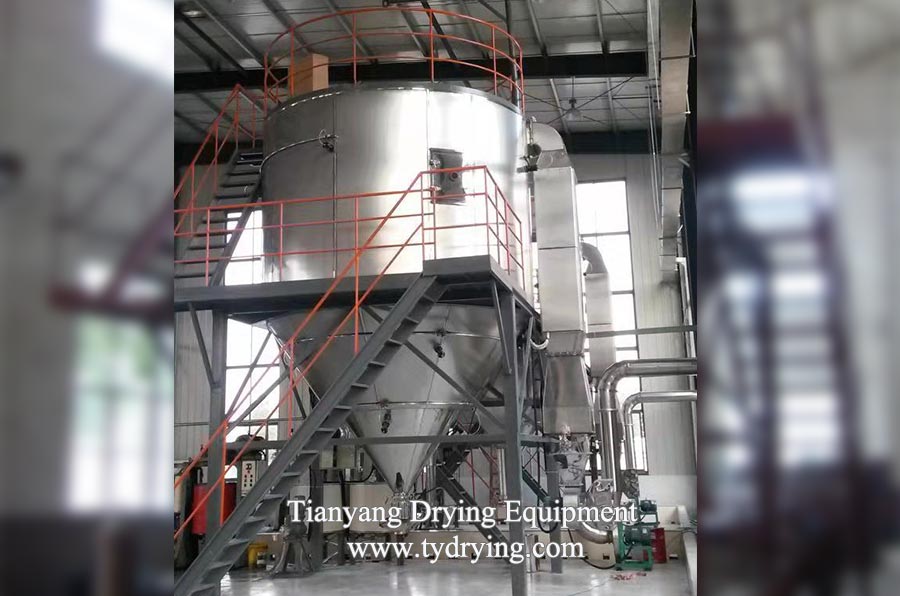

LX-Series fully automatic energy-saving centrifugal spray granulation dryer (hot air drying) is mainly for the slurry with high solid content to be sprayed and granulated by a high-speed centrifugal atomizer. Filling the film, the residual moisture content and loose specific gravity are stable, and it is suitable for isostatic pressing and molding products. The service life of the mold is relatively longer than that of manual and mechanical granulation. The pressed product has better consistency and higher finish.

Main Features

* Fast drying speed and high efficiency;

* It can handle high concentration and high viscosity liquid;

* Products with less fine powder content and good dispersibility, fluidity and solubility can be obtained;

* The product has good sphericity and excellent particle size distribution, and the particle size of the product can be adjusted arbitrarily;

* The production process is simplified, automatic control, convenient operation, suitable for continuous production control.



Scope of Application

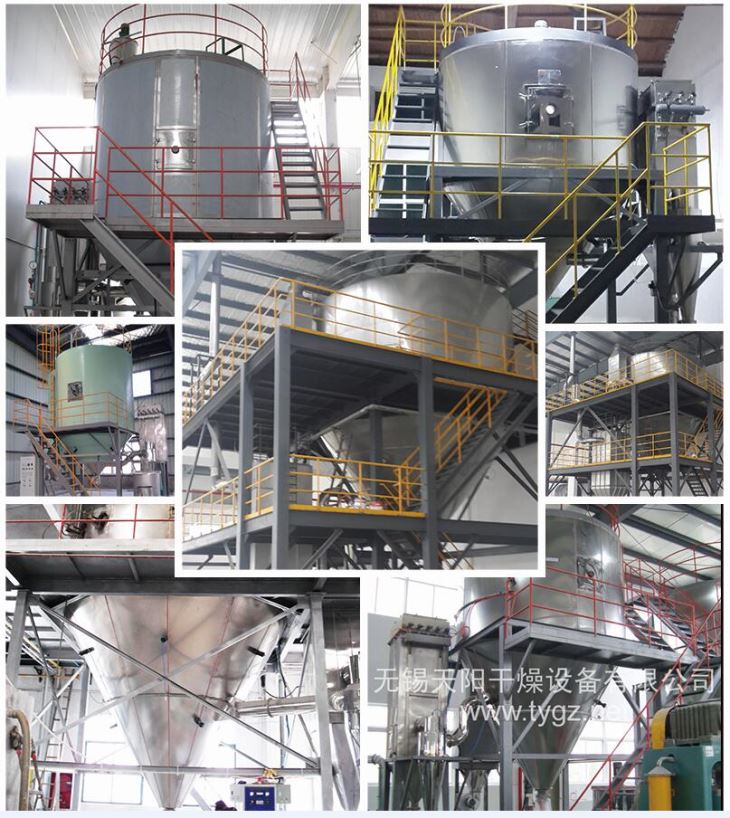

LX-series automatic energy-saving centrifugal spray granulation drying equipment has been used in electronic ceramics, precision ceramics, ceramics, magnetic materials, new energy materials, new metal materials, inorganic medicines, biology, food, chemicals, fine chemicals and other industries.


Technical Parameter

Model

LX Centrifugal Spray Granulation Drying Machine

Max. Water Evaporation Capacity (kg/h)

5

10

15

20

25

30

50

100

120

150

200

300

400

500

600

800

1000

Inlet Temperature (℃)

230-350

Out Temperature (℃)

90-150

Spray Type

High Speed Centrifugal Atomizer

Atomization Rotated Speed (RPM)

0-18000

Spray Disc Diameter (mm)

55-65

70-80

80-120

120-150

150-180

Heating Sources (Option)

Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc.

Remarks: Water evaporation capacity depends material property, solid content, inlet & outlet temperature.
