Brand Name: TIANYANG

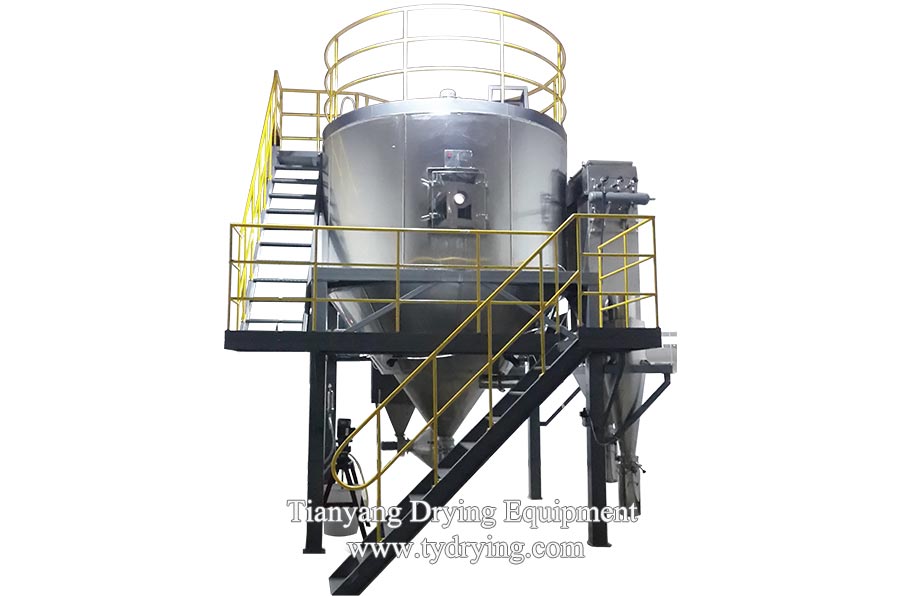

Type: Centrifugal Granulation Spray Dryer
Model: LX Series
Material: SUS304, SUS316L
Max. Water Evaporation Capacity: 5-1000kg/h
Heating Method: Electricity + steam, fuel oil, gas, up to the user.
Applications: vegetable oil or wax oil particle, etc.
Warranty: 1 year
Product Description
LX-series automatic energy saving cold air spray granulation dryer is a kind of regular and fluid spherical granules which are atomized by high-speed centrifugal atomizer in molten state. It is widely used in vegetable oil or wax oil particle. It is characterized by low energy consumption, large output, good product quality, simple and convenient operation, and is a new choice for the majority of users.
Application Range
LX-series centrifugal granule formation spray dryer (cold air granulation) is mainly used in mannitol, stearic acid, paraffin, palm wax, niacinamide, resin, oil, vitamin and other industries.
Technical Parameter
|
Model |
LX Centrifugal Granulation Spray Drying Equipment |
|||||||||||||||||
|
Max. Water Evaporation Capacity (kg/h) |
5 |
10 |
15 |
20 |
25 |
30 |
50 |
100 |
120 |
150 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
|
Inlet Temperature (℃） |
230-350℃ |
|||||||||||||||||
|
Out Temperature (℃） |
90-150℃ |
|||||||||||||||||
|
Spray Type |
High Speed Centrifugal Atomizer |
|||||||||||||||||
|
Atomization Rotated Speed (RPM) |
0-18000 |
|||||||||||||||||
|
Spray Disc Diameter (mm) |
55-65 |
70-80 |
80-120 |
120-150 |
150-180 |
|||||||||||||
|
Heating Sources (Option) |
Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. |
|||||||||||||||||
Remarks: Water evaporation capacity depends material property, solid content, inlet & outlet temperature.
