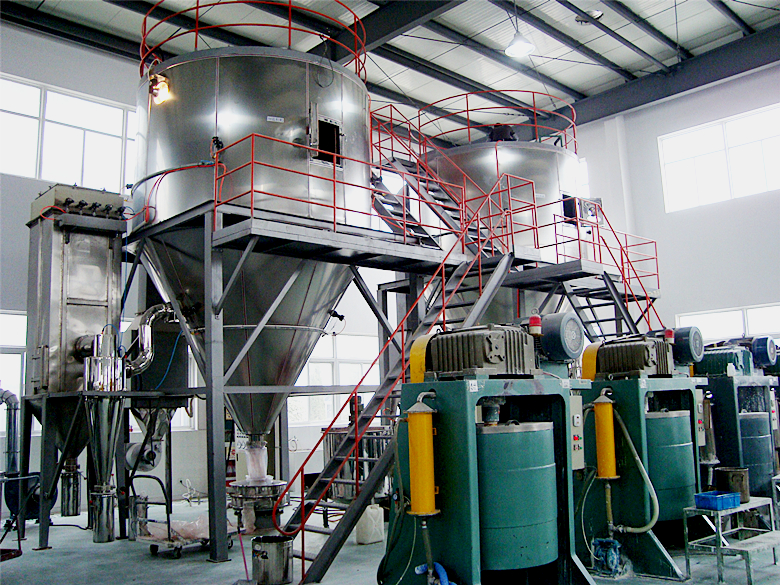

Electronic Ceramics Centrifugal Granulation Spray Dryer
Model: LX-50;Material: SUS304, SUS316L;Max. Water Evaporation Capacity: 50kg/h;Heating Method: Electricity + steam, fuel oil, gas, up to the user.


Contact: Mr Tang
E-mail: yictang@tydrying.com
Mobile Phone: +86-13906177584
Website: www.tydrying.com
Address: Qiangzhou Town,Wuxi City,Jiangsu,China

Whats app:
+8613771018713

Brand Name: TIANYANG

Type: Electronic Ceramic Spray Granulation Dryer

Model: LX-50

Material: SUS304, SUS316L

Max. Water Evaporation Capacity: 50kg/h

Heating Method: Electricity + steam, fuel oil, gas, up to the user.

Applications: Ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc.

Warranty: 1 year


Product Description

On the basis of the introduction of international advanced spray drying technology, Tianyang Drying cooperates closely with many domestic scientific research institutes to develop and produce various types of domestic and foreign leading centrifugal spray granulation drying equipment.

The LX-series high-speed electronic ceramics centrifugal granulation spray dryer produced by our company is suitable for small particle granulation of ceramics, metal materials, electronics, new energy, new materials, chemicals, dyes, food, medicine, biology and other materials. The spherical particle size can be adjusted arbitrarily according to the needs of customers (80 mesh ~ 300 mesh, 300 mesh ~ 500 mesh).

This electronic ceramic spray granulation drying equipment is characterized by simple, convenient and safe operation, good sphericity, good fluidity, good dispersion and good particle size distribution of the finished product. Its main technical performance and indicators have reached the world advanced level in the same industry.





Technical Parameter

Model

LX-50

Max. Water Evaporation Capacity (kg/h)

50kg/h

Material

SUS304, SUS316L

Inlet Temperature (℃)

230-350

Out Temperature (℃)

90-150

Spray Type

High Speed Centrifugal Atomizer

Applications

Ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc.

Atomization Rotated Speed (RPM)

0-18000

Spray Disc Diameter (mm)

70-80

Heating Method

Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc.

Remarks: Water evaporation capacity depends on material property, solid content, inlet & outlet temperature.


Main Features

* Fast speed drying, high efficient.

* Can handle feed liquor in high concentration and high viscosity.

* Can get product in small content, good dispersibility, mobility and solution.

* Good degree of sphericity, excellent particle distribution, can adjust the particle diameter.

* Simplify production process, convenient operation control, can control production continuously.


Main Machine Parts

1. Spray Disc Diameter

This centrifugal plate is specially designed and manufactured for ceramic and electronic industries, which is the best choice for granulation of materials, and has features of wearing-proof and easy assembly and disassembly.

2. Centrifugal Granulated Diffuser

This centrifugal granulated diffuser is the extremely fundamental central part of the drying machines. It can granulate materials into better ball-like products (100 mesh to 350 mesh) with good fluidity by means of arbitrarily adjustment. It has advantages of reasonable design, convenient operation and maintenance.

3. Particles of Electronic Ceramic Spray Dryer

This electronic ceramic spray granulation drying machine is that it can produce spherical products with better fluidity and fine particle distribution, and adjust the average particle size of products arbitrarily (100 to 350 meshes).
